Kit contents and final pricing, subject to change

Post-registration GVM upgrade solutions available up to 4000kg for all Ineos Grenadier & Quartermaster models.

Available in some states and territories dependant on specific and current regulations.

Pricing varies depending on package options and modification certification charges

We will be offering Pre and Post Rego Kits

Stage 1: 4000kg

Stage 2: 4200kg

Stage 3: 4499kg

Pre Rego on up to 37" Tyres

Post Rego on 34" Tyres

INEOS 4000KG GVM UPGRADE INC ALL GRENADIER & QUARTERMASTER VARIANTS

Includes: airbags and high pressure sleeves installed in rear coils and engineering recovery fee for GVM.

Front Axle: 1667kg

Increased Rear Axle: 2350kg

115 or higher rated Tyre Options

4200KG GVM UPGRADE WITH IMS SHOCKS INC ALL GRENADIER & QUARTERMASTER VARIANTS

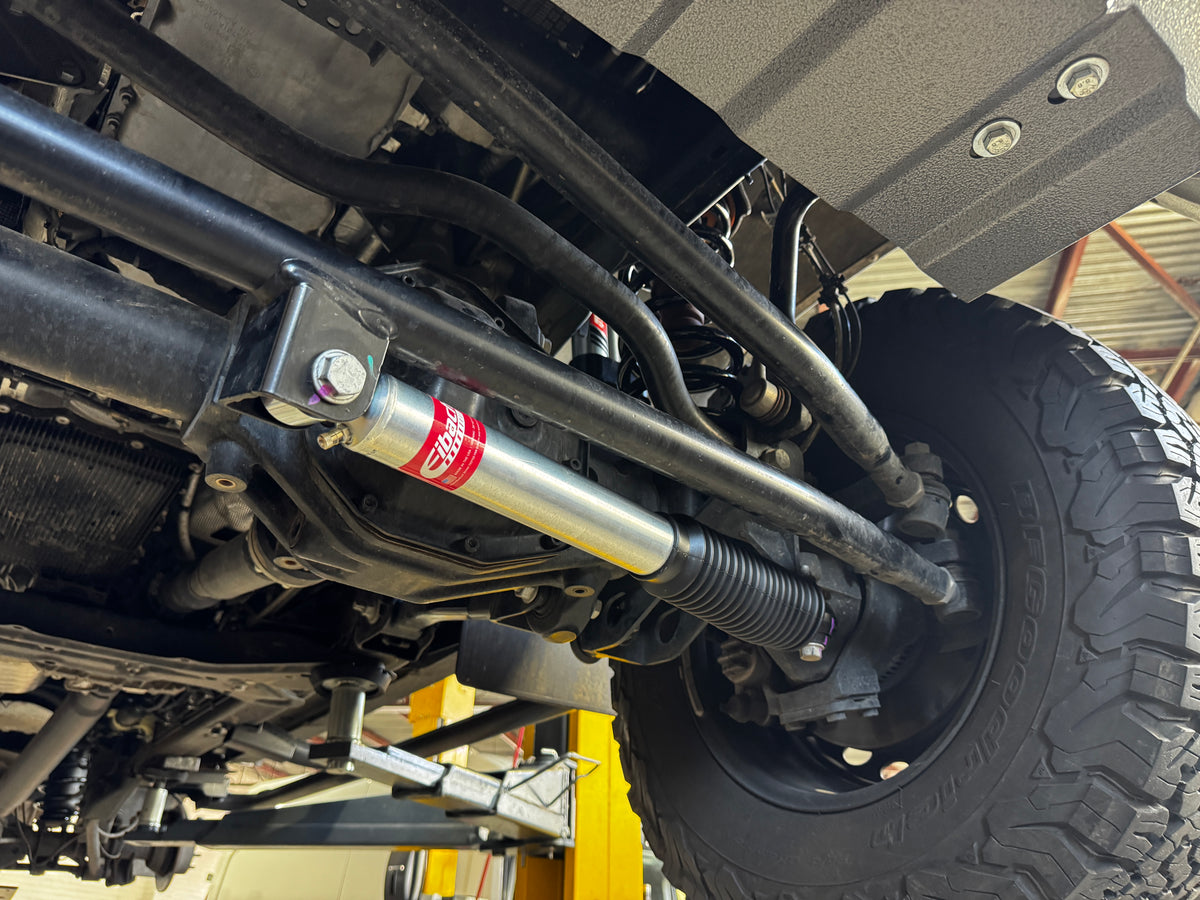

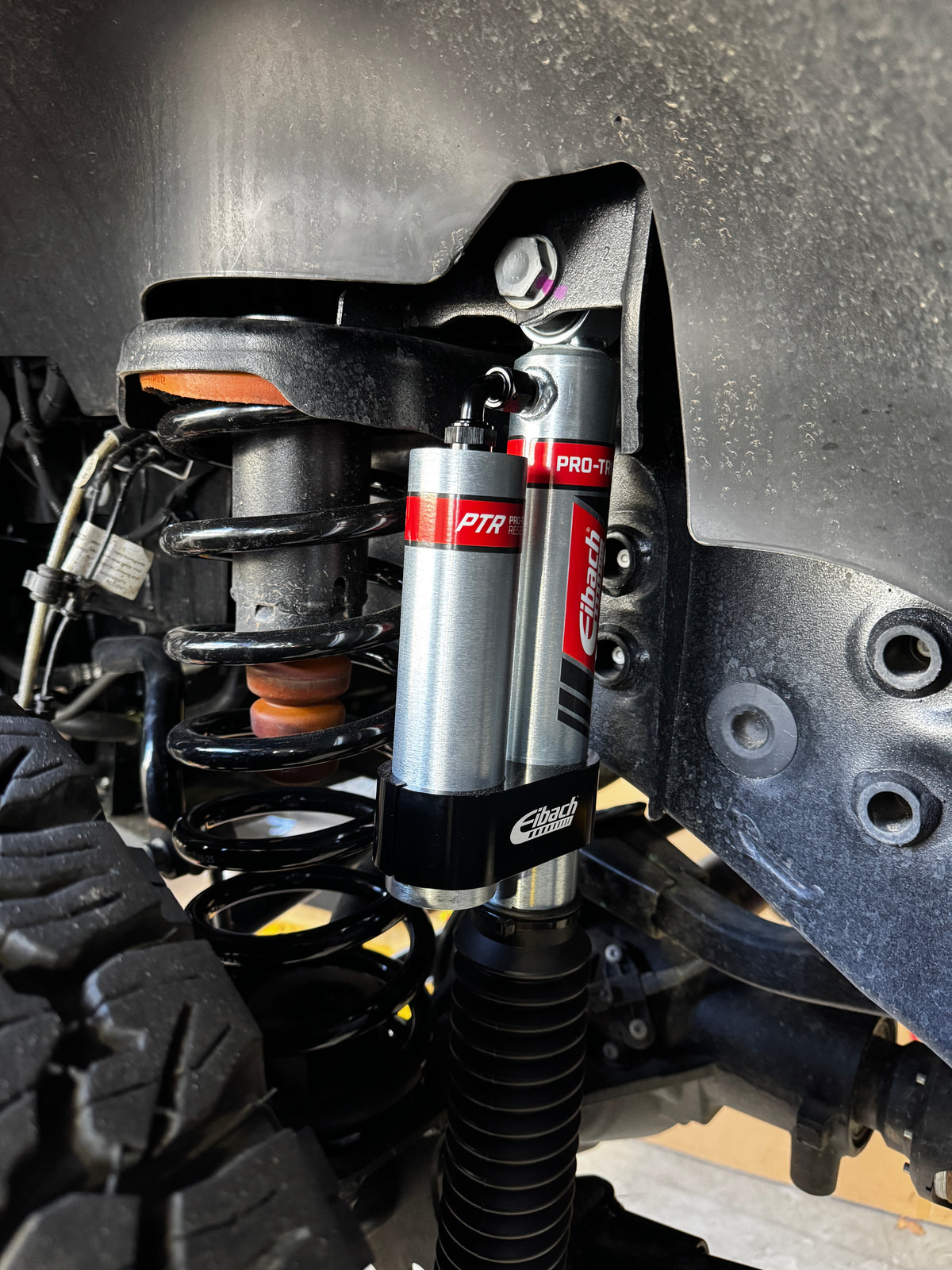

Includes up to 2" lift, IMS shock absorbers front and rear, rated coils front and rear (to be specified via customer weight sheet), airbags installed in rear coils, adjustable rear panhard rod, upgraded steering damper, modified lower control arms to improve castor adjustment and engineering recovery fee for GVM.

Front Axle: 1800kg

Increased Rear Axle: 2400kg

115 or higher rated Tyre Options

4200KG GVM UPGRADE WITH MRA SHOCKS INC ALL GRENADIER & QUARTERMASTER VARIANTS

Includes up to 2" lift, MRA adjustable shock absorbers front and rear, rated coils front and rear (to be specified via customer weight sheet), airbags installed in rear coils, adjustable rear panhard rod, upgraded steering damper, modified lower control arms to improve castor adjustment and engineering recovery fee for GVM.

Front Axle: 1800kg

Increased Rear Axle: 2400kg

115 or higher rated Tyre Options

4499KG GVM UPGRADE WITH IMS SHOCKS INC ALL GRENADIER & QUARTERMASTER VARIANTS

Includes up to 2" lift, IMS shock absorbers front and rear, rated coils front and rear (to be specified via customer weight sheet), airbags installed in rear coils, adjustable rear panhard rod, upgraded steering damper, chassis and diff bracing, modified lower control arms to improve castor adjustment and engineering recovery fee for GVM.

Chassis bracing and diff bracing is installed on areas of highest stress to support the increased load capacity of the GVM upgrade.

Front Axle: 1800kg

Increased Rear Axle: 2700kg

Factory BFG 121 load rated tyre option or aftermarket rated wheel and tyre packages (sold separately). If aftermarket wheels and tyres are added they are required to be 1350kg or higher (min 119 tyre) rated.

4499KG GVM UPGRADE WITH MRA SHOCKS INC ALL GRENADIER & QUARTERMASTER VARIANTS

Includes up to 2" lift, MRA adjustable shock absorbers front and rear, rated coils front and rear (to be specified via customer weight sheet), airbags installed in rear coils, adjustable rear panhard rod, upgraded steering damper, chassis and diff bracing, modified lower control arms to improve castor adjustment and engineering recovery fee for GVM.

Chassis bracing and diff bracing is installed on areas of highest stress to support the increased load capacity of the GVM upgrade.

Front Axle: 1800kg

Increased Rear Axle: 2700kg

Optional Single and Twin ARB air compressor upgrades available.

MORE RUGGED. MORE CAPABLE. MORE FUN
